Greencrop WAM Submersible Pumps

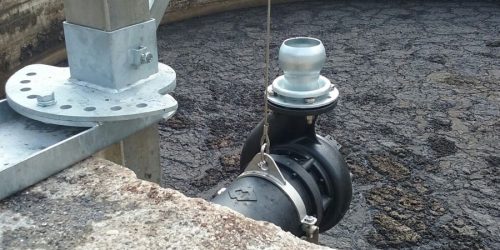

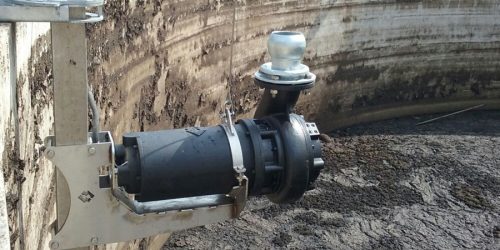

The GCWSP submersible pump consists of a waterproof cast iron body with internal electric motor and a special impeller. The pump unit contains a multi-blade impeller and double chop steel blades.

It is designed for feeding fibrous material to a separator, such as the Greencrop Sepcom range.

The pumps are suitable for heavy-duty applications that require a prior shredding and chopping of solids or fibrous substances, contained in the material to be pumped to a separator.

The GCWSP submersible pump is available in various sizes. The most typical application is in cow manure management due to its high chopping performance that ensures even feeding of separators. The machine also works with slurry plant management (pig and poultry).

With the development of AD plants becoming more popular, the GCWSP pumps are a beneficial addition to improving separation performance.

Benefits:

  • High flow rate
  • Wide size range available
  • Sturdy design and wear-resistant coating
  • High separation performance
  • Quick installation
  • Vertical or horizontal installation
  • Easy maintenance
  • Reduced operating costs

Technical features/performance:

  • Throughput rate: 90l/s – 324m3/h max
  • Head: 21.5m max
  • Drive unit power rating: 2.2kW – 7.5kW
  • Outlet size: DN80 – DN100
