Elite Range
Elite Range

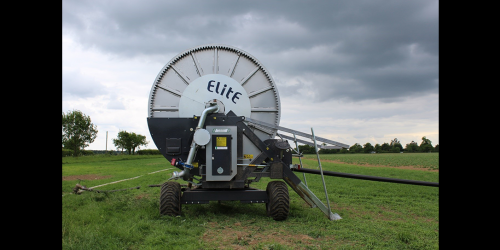

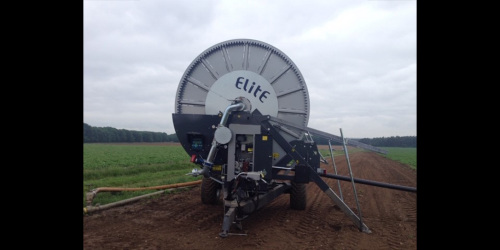

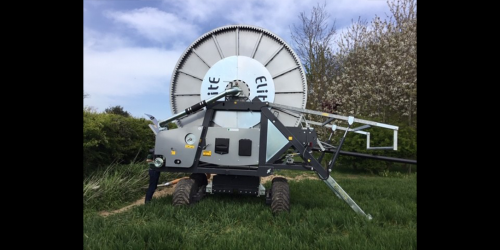

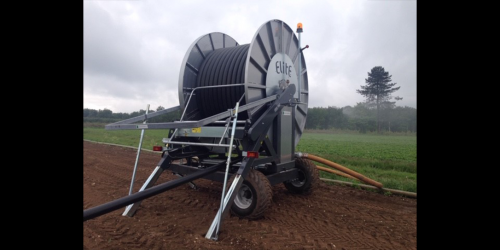

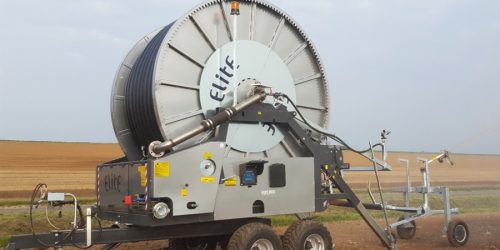

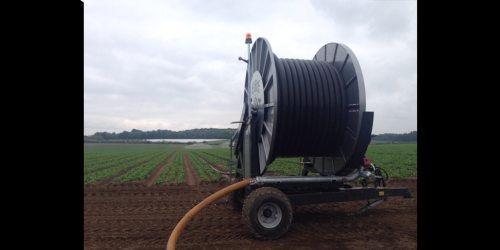

Greencrop are pleased to offer a new range of machines. The Elite 730, 735 and 800 series, with a range of hose diameters, from 100 mm to 140 mm, and hose length options, up to 700 m long.
The Elite range of machines are designed with the professional grower in mind who demand reliable and easy-to-operate irrigation systems that require simple maintenance.
The attention to detail starts with each machine being steel shot blasted, then painted in epoxy anti-corrosive primer, with a final coat of oven baked polyurethane paint for a superb long-lasting finish. Irrigator chassis and trolleys are hot galvanized.

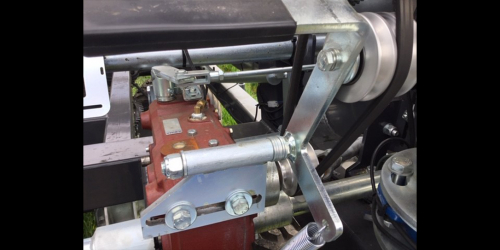

The drive system continues with the proven Irrimec design. The drum is driven from one side by a cut gear ring positioned on the outer diameter of the drum. (on both sides on the 800 series) Unlike a chain drive, the hose drum is driven by a low-torque gear drive, which is positive and low wearing. Drum bearings are now fitted with an auto lube cartridge ensuring problem free reliability. The turbine drive retains Irrimec’s patented partial flow “Turbimec” system, interchangeable for flows of 10-130mc/hr at low inlet pressure.

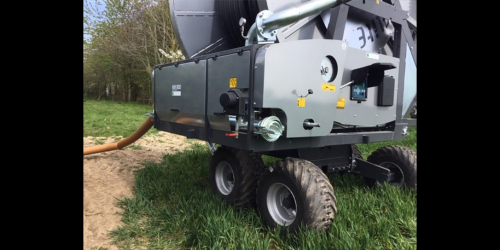

For more durability during long demanding irrigation periods, the chassis’ are constructed of large steel frames using a 5 mm thick box section. The hydraulic legs are 50% larger with built-in internal rams for improved weather resistance and are designed to exert a central push against the drum for added stability. All of the guards are now manufactured in steel for increased durability and to enhance the appearance of the machine. The gun lift frame is operated with its own hydraulic rams also, the frame is 50% larger, pivoting higher on the machine for additional strength and reliable operation.

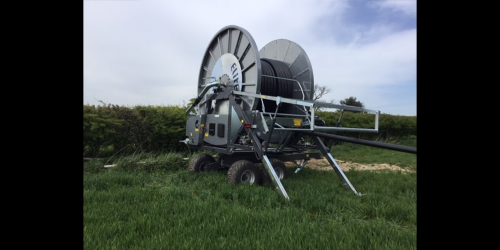

The Elite is supplied with a full hydraulic system for operation of the jack, turntable and legs with the control levers now mounted on its own adjustable stand at the front of the machine. This can be adjusted to the right or left hand side of the drum, therefore when turning the drum into the work position you are always in the line of sight to position the trolley in the correct row, making the machine set up easier.
The reinforced turntable gear and hose guide has not one but four metal bearing rollers guiding the hose onto the drum, aiding drum rewinding and improving hose durability. Gun trolleys are self-pivoting, have been made 50% stronger, are fitted with wheel weights and have a double support wheel for the hose.

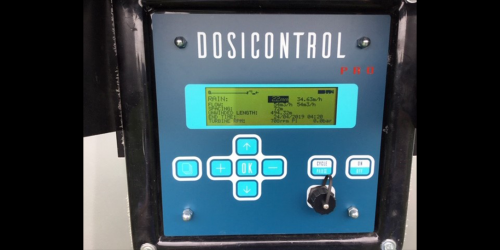

Machines are supplied as standard with the new ‘Dosicontrol’Pro a simple-to-use computer control system that follows a logical formula for setting rates and delaying start/stop times. These can also be controlled remotely by GSM system for improved operator and management convenience. (standard on all Elite machines)
The 730-735 machines are available with either a single or tandem axle chassis, with a large range of tyres. 800 machines are standard with tandem axle with large tyres.
