Universal Hydraulic Pumps

Universal Hydraulic Pumps

The HM hydraulic pumps are designed for agriculture and construction, where pumps with the following specifications are needed:

  • Independent of electricity
  • Can handle large quantities of impure fluids
  • Extreme flexibility
  • A reserve pump when main pump is not working.

The pump can be driven by hydraulic outlets from the farm tractor, back hoe loader or telescopic loaders etc.

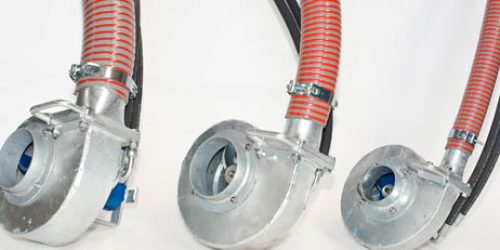

The pump is supplied in three versions:

  • 2″ pump with 12.5 ccm. motor with a power of 3hp at 26l oil per minute. Flow approx. 48m3/hr
  • 3” pump with 25 ccm. motor with a power of 6hp at 40l oil per minute. Flow approx. 130m3/hr
  • 4” pump with 40 ccm. motor with a power of 9hp at 60l oil per minute. Flow approx. 150m3/hr

The pumps are standard with no hoses but can be supplied with 5m PVC hose and 2 x 7 meter 1⁄2” hydraulic hoses with quick acting couplings. We offer a whole range of hose couplings, so the pump can connect with existing installations.

Larger size pumps are available, please call to discuss.
