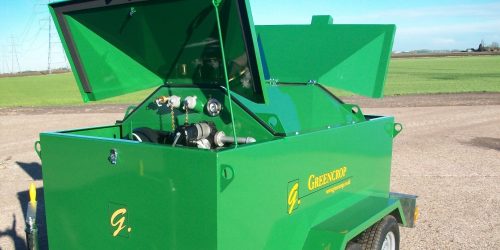

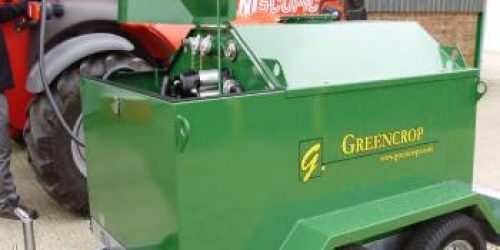

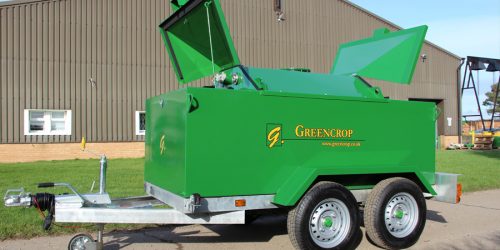

AdBlue Bowsers

High speed bunded AdBlue bowser
– GCFB 220TAB

Greencrop offer high speed bunded fuel (diesel) bowsers for highway use. The high-speed tow version GCFB 220T tandem axle has a capacity of 1,000 litres (220 gallons), with a 110% bund capacity. It is fully compliant to ADR – IBC – UN approval, fitted with implosion and explosion safety valves. The unit complies with the latest VOSA type approval regulations, IVA (Individual Vehicle Approval) certification and the latest regulation lighting.

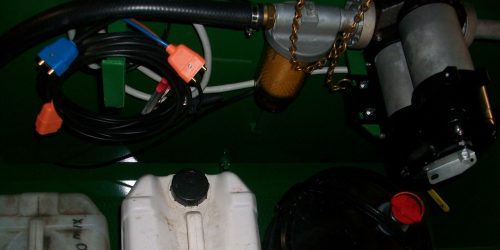

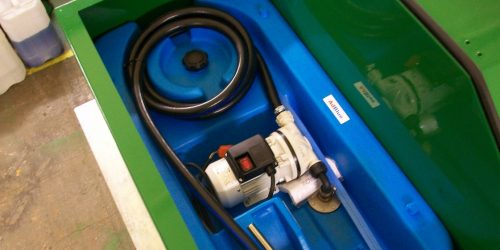

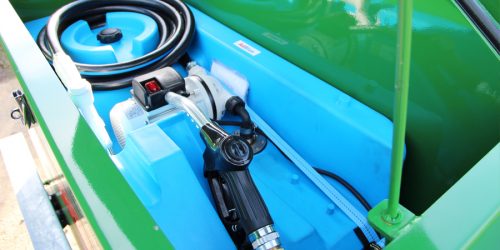

The GCFB 220 TAB has an integral built-in 220 litre AdBlue tank and pumping system with both fuel and AdBlue hoses that are retractable from the rear of the bowser for ease.

Standard equipment

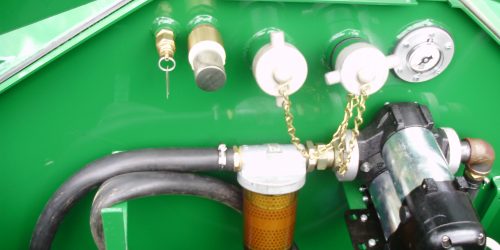

  • 12v 80l/m diesel pump
  • Auto shut off nozzle c/w 6m delivery hose
  • 10 micron filter
  • Dial style fuel gauge
  • Indespension axle
  • Over run brakes & parking brake
  • 165-R13 tyres on tandem axle
  • Mudguards
  • Number plate bracket
  • 50mm lockable ball hitch
  • Jockey wheel
  • Road lights and fog & reversing lights
  • Lockable cabinet
  • Visual inspection hatch
  • LED lighting
  • Implosion non return valve
  • Explosion safety relief valve
  • Removable inner tank
  • Anti-vibration rubbers on outer and inner tank chassis
  • ADR – IBC – UN approved
  • IVA VOSA registered type approval certification

Optional extras

  • 24v or dual 12/24v fuel pump
  • 12v or 24v battery
  • Flow meter
  • Fire extinguisher

Dimensions

  • L (exc. drawbar): 3,150mm
  • W: 1,660mm
  • Weight (unladen): 1160kg
  • Weight (laden with diesel & AdBlue): 2,380kg
