WAM Submersible Mixers
SEPCOM® and CHIOR® offer advanced solutions through a comprehensive range of machines and accessories for livestock manure treatment and for effluents in biogas production.
Manure treatment in cattle and pig farms, and AD plants is a key application for the SEPCOM® range in animal husbandry. SEPCOM®’s expertise in separation, agitation and pumping technologies originates from this specific sector. The machines have been optimised over time with CHIOR® pumps and agitators allowing SEPCOM® to provide highly reliable solutions in all phases of slurry treatment. Products suitable for heavy-duty operation, a global distribution network and an attractive price make the SEPCOM® range the ideal solution for every farmer. With over 4,000 separators installed in cattle farms worldwide, SEPCOM® ranges among the main players on the global market.

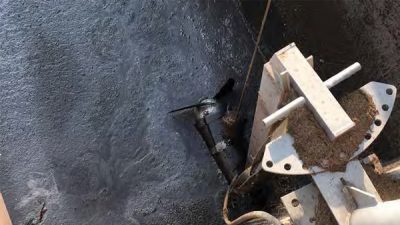

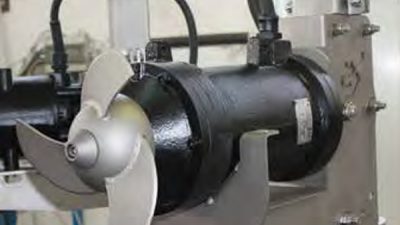

CHIOR® WSA Submersible Agitators
The CHIOR® WSA Submersible Agitator with drive power installed of up to 7.5 kW finds its main application in the mixing of livestock manure, biogas effluents, as well as industrial and civil wastewater.
CHIOR® WSA agitators consist of an electric motor coupled with a propeller, designed and built for blending and suspension of liquids with medium-low density. – Excellent mixing performance (up to a radius of 40 metres) – Easy maintenance – Low operating costs.

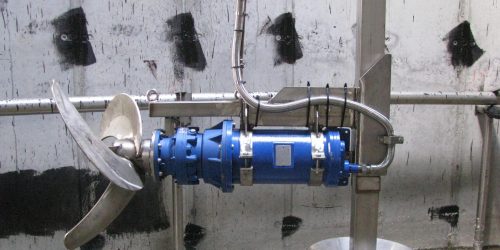

CHIOR® SE Submersible Agitators
The CHIOR® SE Submersible Agitator, with drive power installed ranging from 11 to 22 kW, propeller diameters from 520 to 1,000 mm and mixing efficiency up to a radius of 60 metres, finds its main application in mixing medium and medium-high density livestock manure. It is also used for agitation in biogas and industrial waste digesters. – Special shape of highly efficient engineered propeller – Wide range and different rotation speeds available – Adjustable support system – Low power consumption – Easy maintenance.
CHIOR® VPH Vertical Chopper Pumps with Electric Motor
The CHIOR® VPH is a long shaft chopper pump with external motor drive. It is used for lifting manure from the livestock industry, as well as effluents from biogas production and industrial plants. A stainless steel structure and oil bath transmission ensure enhanced durability. High shredding efficiency, even with high percentages of solids, is ensured by suction from the top and by a spiral chopper system.
- Delivery pipe equipped with vertically and horizontally adjustable mixer nozzle
- Flow rate: 138 ~ 220 m3 /h
- Delivery diameter: 100 ~ 120 mm
- Material: Cast iron or 304L stainless steel
- Drive power installed: 5.5 ~ 22 kW
CHIOR® VPT Vertical Chopper Pumps with PTO-Drive
The CHIOR® VPT is the PTO-drive version of the VPH model. The power take-off ensures increased performance in terms of achievable flow rate and head of the pump
– Flow rate: 250 ~ 660 m3 /h
– Delivery diameter: 120 ~ 200 mm
– Material: Cast iron or 304L stainless steel
– Drive power installed: 30 ~ 83 kW
CHIOR® WSP Submersible Chopper Pumps
CHIOR® VPL Vertical Chopper Pumps with Electric Motor for Light-duty Applications The CHIOR® WSP Submersible Chopper Pump consists of an electric motor adapted to a pump impeller and a cutting blade. This pump is designed to convey water, wastewater and liquids containing solid lumps and fibre. It consists of the following components: – External shell manufactured from steel with waterproof structure allowing immersion into the liquid to be aspirated – Encapsulated waterproof three-phase electric motor – Electric cable for mains supply – Chopper blade
CHIOR® VPL Vertical Chopper Pumps with Electric Motor for Light-duty Applications
The CHIOR® WSP Submersible Chopper Pump consists of an electric motor adapted to a pump impeller and a cutting blade. This pump is designed to convey water, wastewater and liquids containing solid lumps and fibre. It consists of the following components: – External shell manufactured from steel with waterproof structure allowing immersion into the liquid to be aspirated – Encapsulated waterproof three-phase electric motor – Electric cable for mains supply – Chopper blade The CHIOR® VPL is a Long Shaft Chopper Pump with external motor drive that finds its main application in the preliminary treatment of manure from the livestock industry, in particular of low-solids pig manure. Aspiration is located in the lower part of the pump body, while shredding takes place by means of high efficiency chopper knives.
– Externally mounted drive unit for easy maintenance
– Oil bath transmission protected by mechanical cemented carbide seal
– Shredding knife system with suction from the bottom of the pump body
– Flow rate: 36 ~ 84 m3 /h – Delivery diameter: 60 ~ 80 mm
– Material: Cast iron or 304L stainless steel
WAM® TCB Bulk Biomass Digester Feeding Systems TCB is a versatile screw lift system for extraction of the solid fraction of biomass from the mixer / batcher and subsequent lifting and feeding of the material into the anaerobic digester in biogas generation plants. – Vertical screw conveyor system with supporting structure – Heavy-duty high thickness steel screws – Standard connection for mixer / hopper
